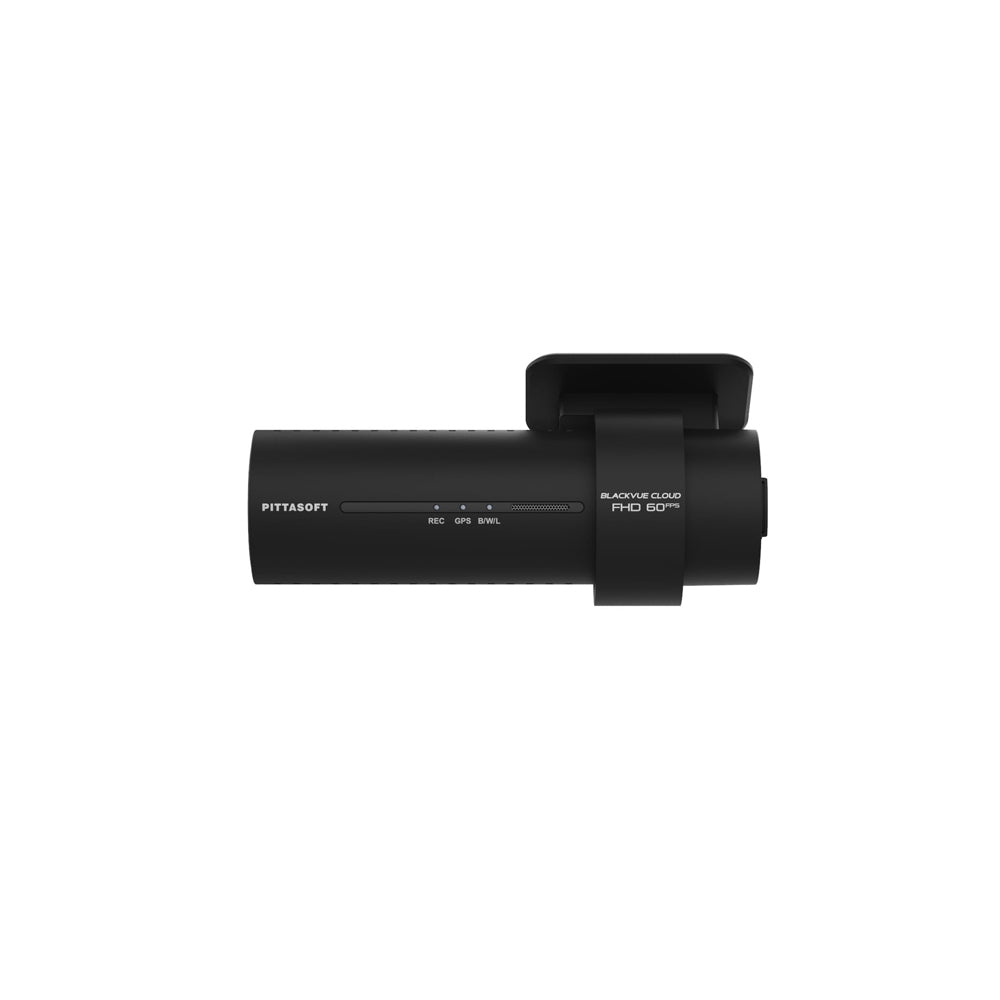

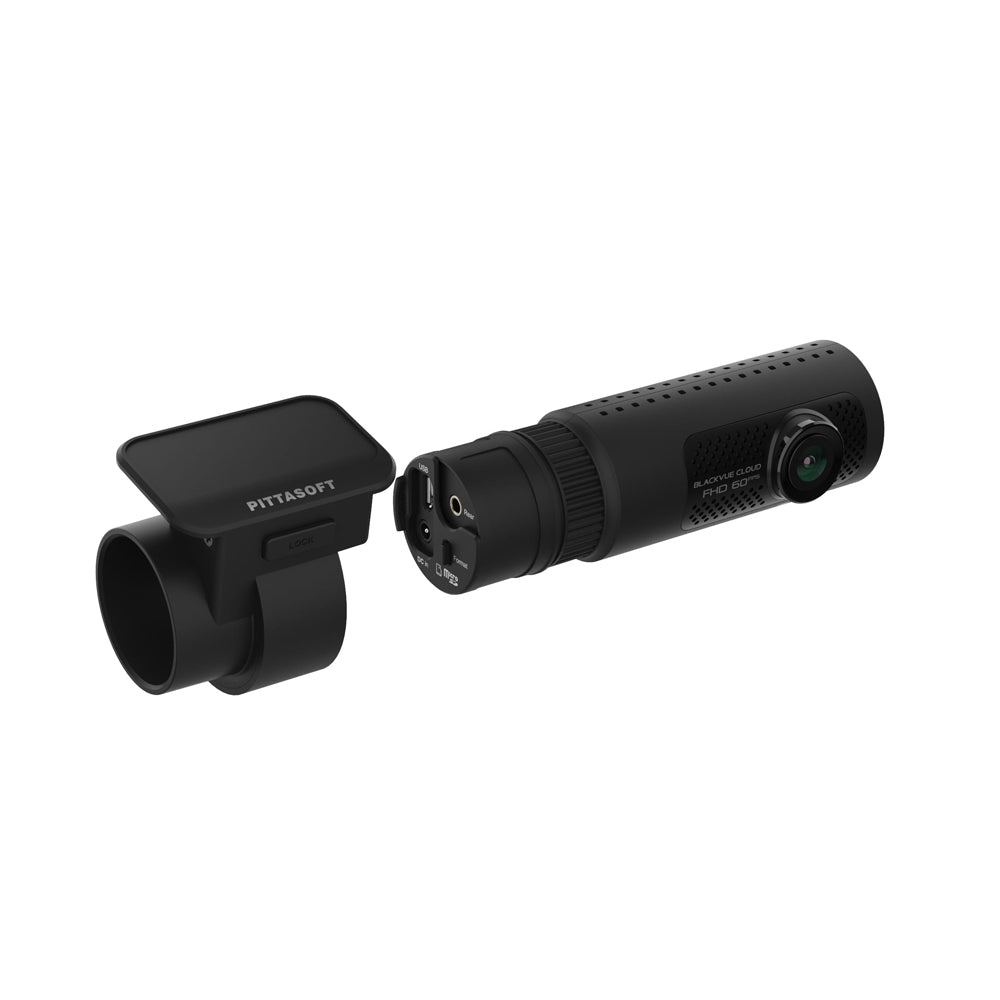

BLACKVUE DR770X-1CH-II FRONT FACING FULL HD (1080) DASHCAM 64 GB

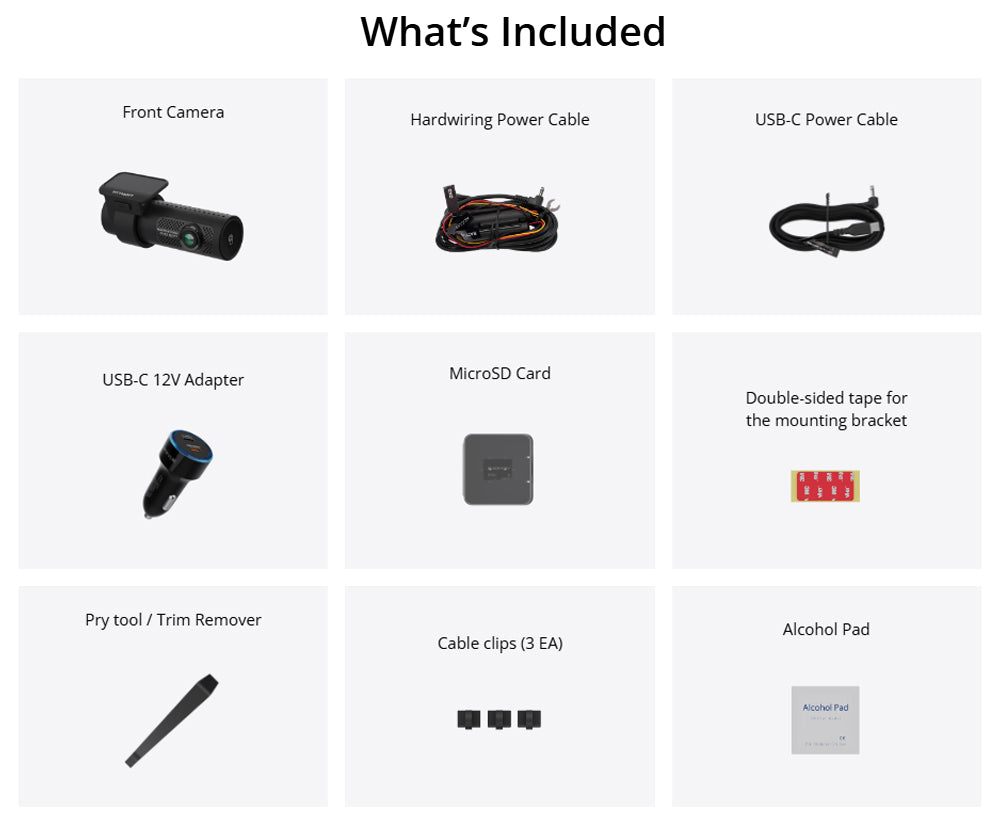

BlackVue DR770X-1CH II features Full HD Sony STARVIS™ image sensor for best image quality under any light. Also included are GPS logger, built-in Wi-Fi, Cloud connectivity, impact and motion detection. Full HD Cloud Dashcams Powered by Sony STARVIS Sensors Native Parking Mode Let your BLACKVUE watch over your vehicle 24/7 What's Included? • Front Camera • Hardwire Power Kit • USB-C Power Cable • USB-C 12V Adapter • MicroSD Card • Double-sided tape for the mounting bracket • Pry tool / Trim Remover • Cable clips (3 EA) • Alcohol Pad Specifications Model Name DR770X-1CH II Channel 1CH (upgradable to 2CH) Highlights Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module Product Dimensions Black /length 135.0mm x Width 101.0mm x Height 37.5mm / 209g Memory Support microSD card up to 1TB Recording Modes Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. Parking Mode YES (hardwiring cable included) Parking Mode Event Voice Notifications YES Imaging Sensor Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Viewing Angle Diagonal 139°, Horizontal 116°, Vertical 62° Resolution Frame Rate Full HD @60fps * Frame rate may vary during Wi-Fi streaming Video Codec H.264 (AVC) Image Quality and Bitrate Front/Rear Highest (Extreme): 25 Mbps Highest: 12 Mbps High: 10 Mbps Normal: 8 Mbps Format Free YES (Adaptive) Event File Overwrite Protection YES (up to 50) SD Card Failure Alert YES Scheduled Reboot YES Video File Extension MP4 Wi-Fi Built-in (802.11 b.g.n) Cloud Compatible YES GPS Built-in (Dual Band : GPS, GLONASS) Specifications Microphone Built-in Speaker Built-in Impact Sensor 3-Axis Acceleration Sensor LED Indicators Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Button Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. Operation Temperature -20 °C - 80 °C (-4 °F - 176 °F) Storage Temperature -20 °C - 80 °C (-4 °F - 176 °F ) High Temp Cut Off Approx. 80 °C (176 °F) Backup Battery Built-in supercapacitor Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) Power Consumption Hour Normal Mode (GPS On/1CH): Avg. 240mA / 12V Parking Mode (GPS Off/1CH): Avg. 190mA / 12V * Actual power consumption may vary depending on use conditions and environment Certifications FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC Software BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher Application BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher Others Adaptive Format-Free File Management System Bluetooth Built-in (V2.1+EDR/4.2) LTE External (optional)
