Description
Solar Charge Anywhere

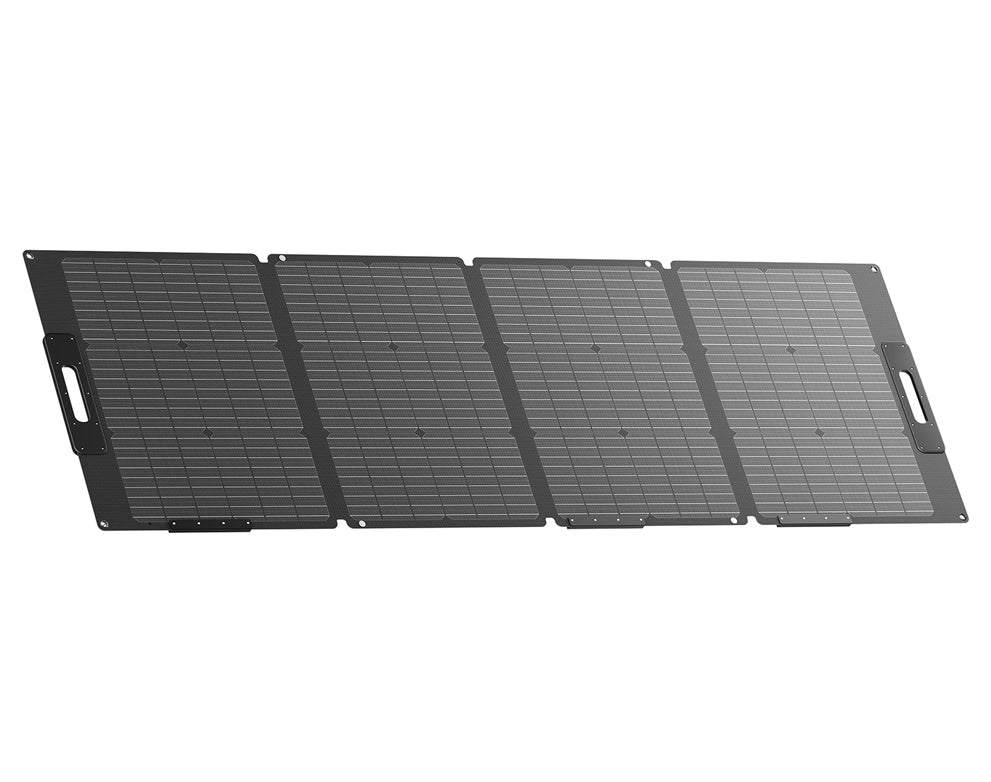

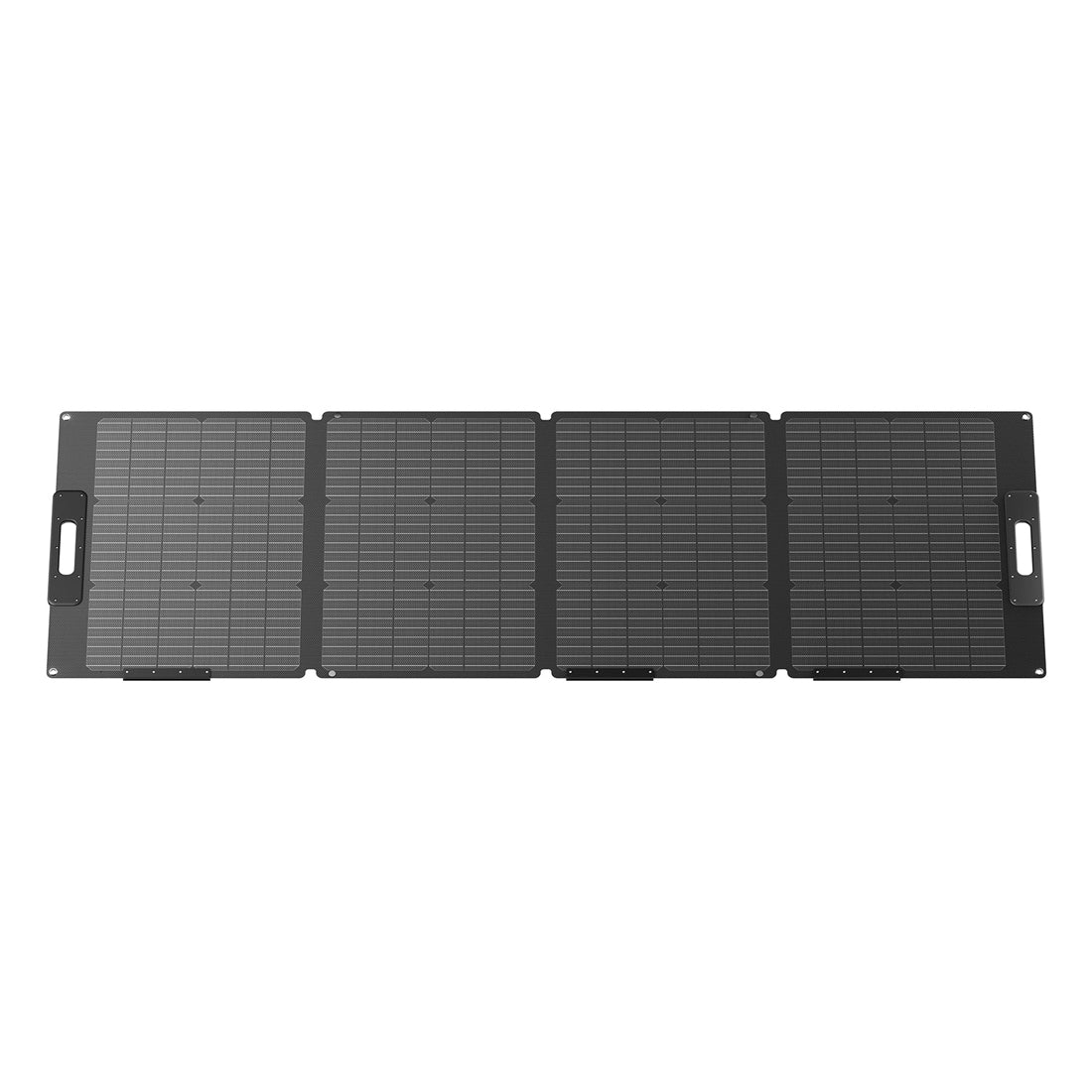

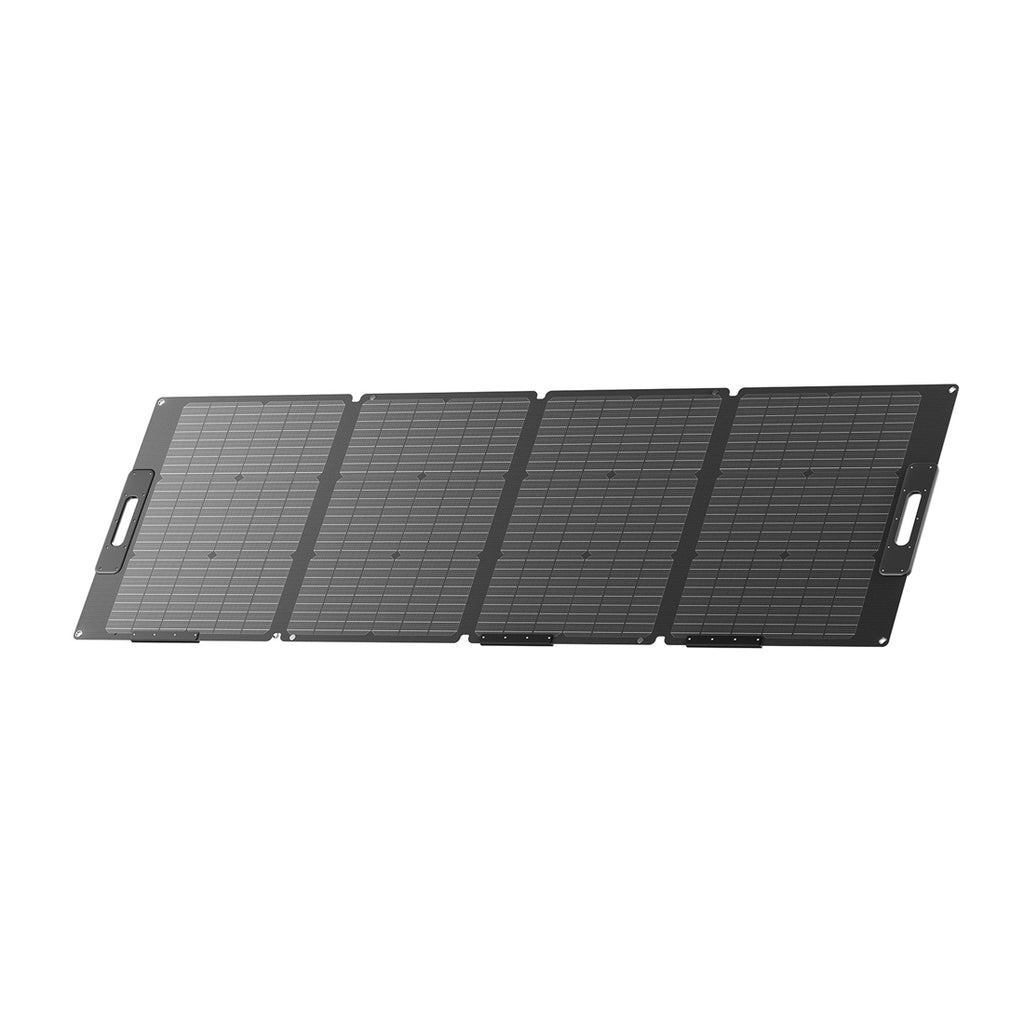

Connect it and leave it. BLUETTI 120W solar panel is set to keep your solar generators juiced as long as there is sunlight available.
23.4% High Efficiency
Built with monocrystalline solar cells, the PV120 can convert up to 23.4% of sunlight into solar energy, charging your solar generators even in bad weather.

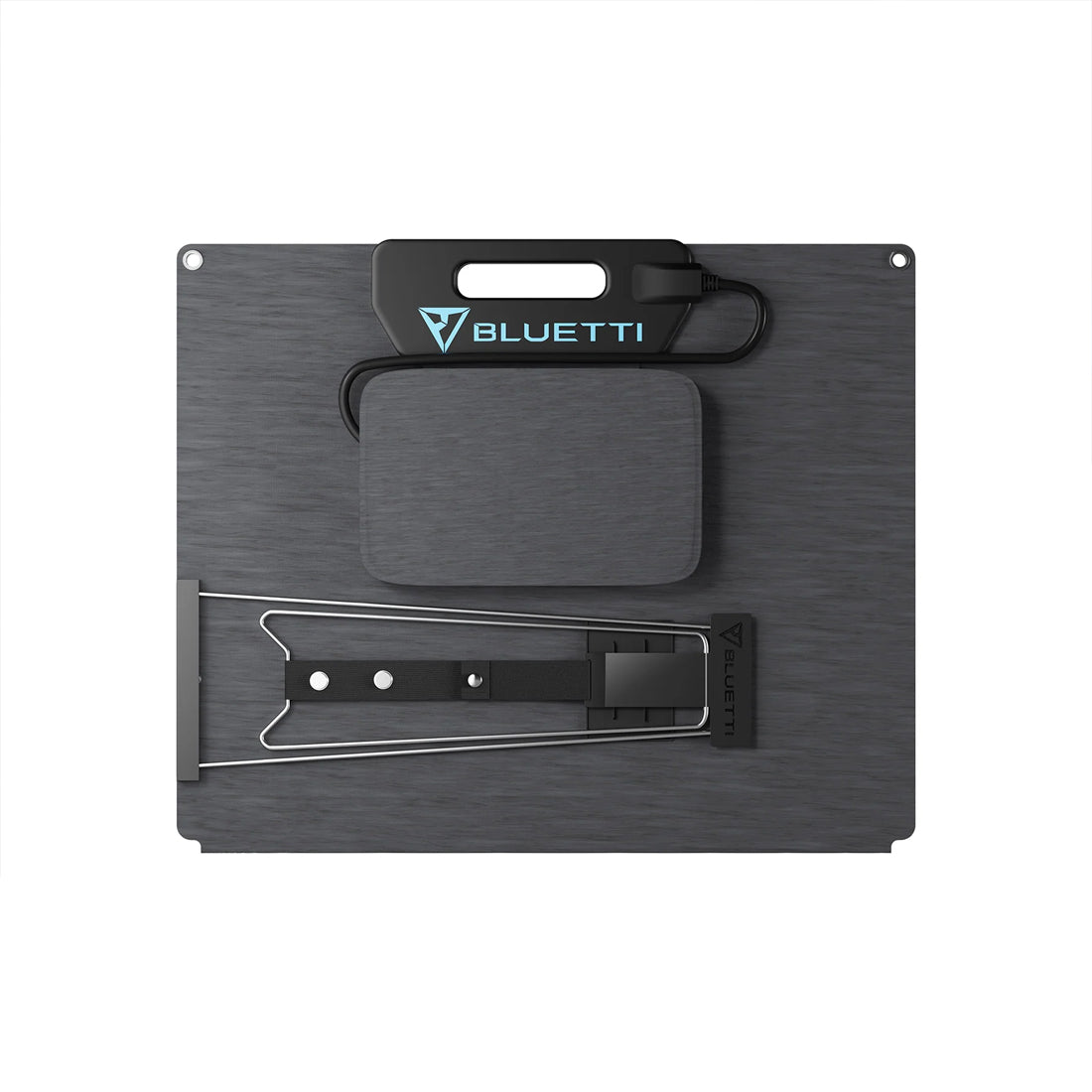

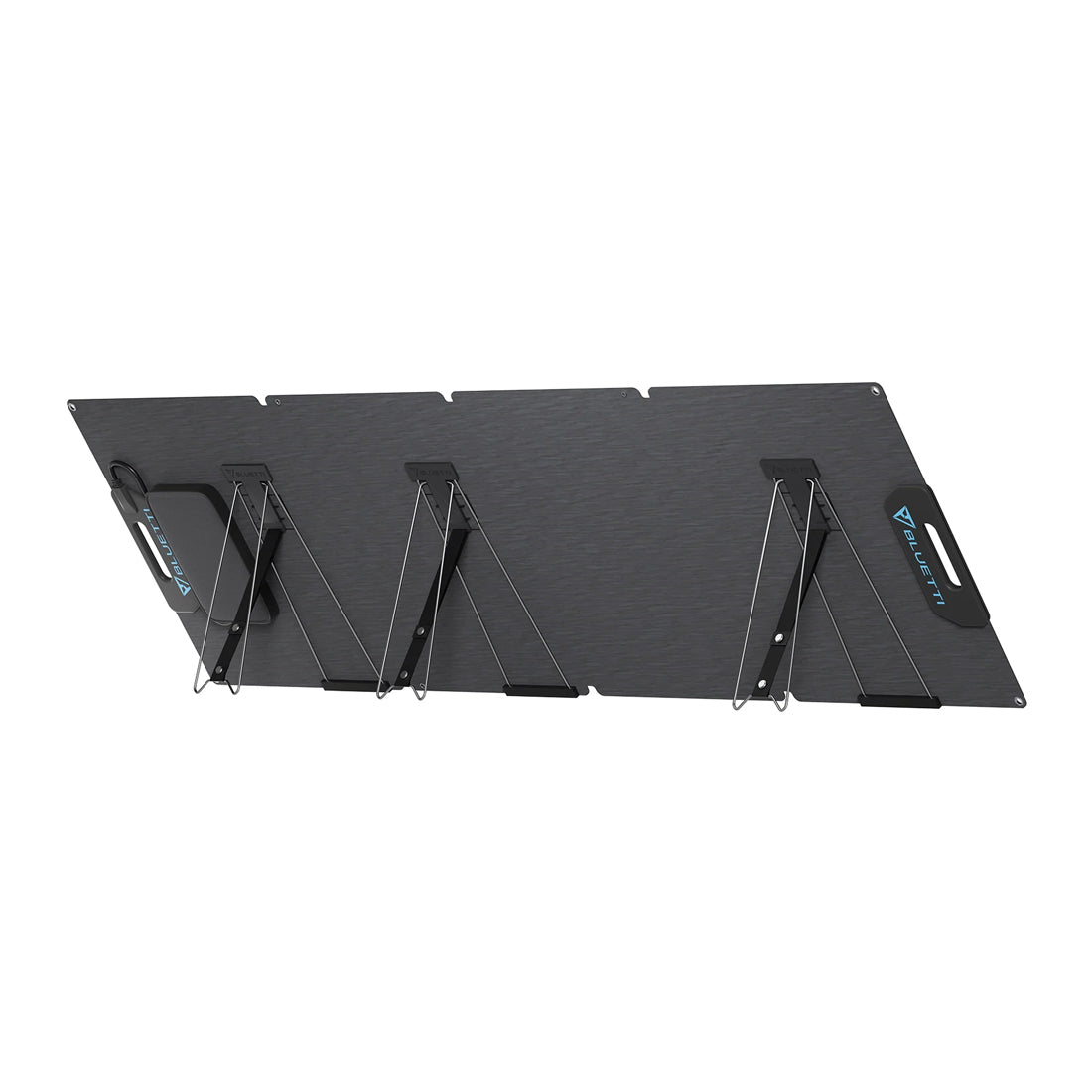

Easy Setup With Kickstand
Unfold the PV120, snap the kickstands, adjust the angle to maximize the amount of sunlight, and you're ready to harness solar energy for your generators.
(The recharging time refers to 80% of power level being charged*)
BLUETTI EB55 (537Wh) + PV120: Charge in as soon as 5 hours
BLUETTI AC200P (2,000Wh) + 2*PV120: Charge in as soon as 8.5 hours
BLUETTI AC200MAX (2,048Wh) + 4*PV120: Charge in as soon as 4.5 hours
BLUETTI AC300 + B300 (3,072Wh) + 8*PV120: Charge in as soon as 3.5 hours
BLUETTI EP500 (5,120Wh) + 6*PV120: Charge in as soon as 7.5 hours
Built to Last
The ETFE coating and IP65 junction box are designed to withstand any scratches and watersplash, perfect for camping, fishing, hiking and much more.(Prevent exposure to rain or no soak in water)
Portable in Every Way
Specifications
POWER
Model:PV120
Power:120W
Lamination:ETFE (Ethylene tetrafluoroethylene)
Cell Type:Monocrystalline Silicon
Cell Efficiency:Up to 23.4%
Voltage at Max Power(Vmp):19.6V
Current at Max Power(Imp):6.1A
Open Circuit Voltage(OCV):24.4V
Short Circuit Current(Isc):6.43A
GENERAL
Connector:Standard MC4 Connector
Weight:12.57lbs (5.7kg)

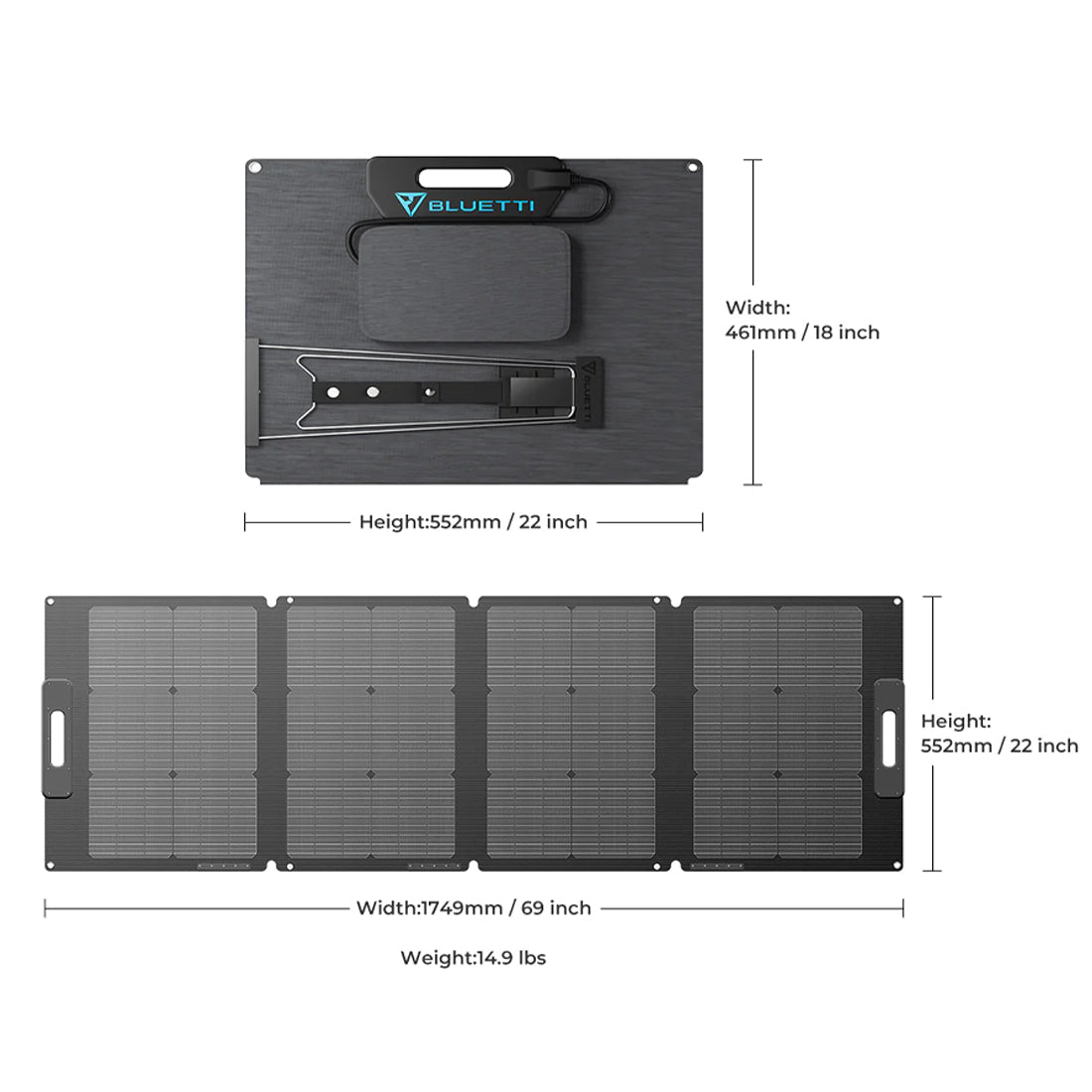

Dimensions (Unfolded):21 × 65in (53.3 × 165.2cm)
Dimensions (Folded):21 × 18.5in (53.3 × 47cm)
Operating Temperature:14-149? (-10-65?)
Best Working Temperature:77? (25?)
Cable Length:118in (3m)
Certifications:FCC, CE, ROHS
Warranty:12 Months
