Description

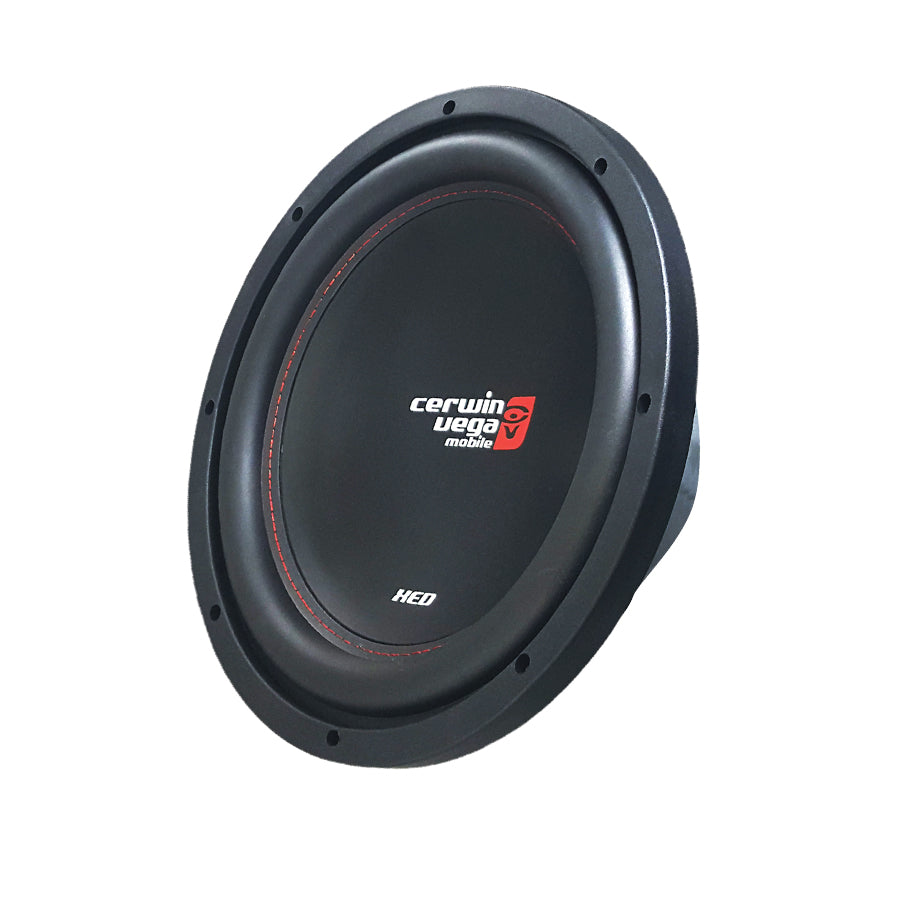

XED10V2 – 10" Single 4 Ohm Voice Coil XED Series Subwoofer
Features:
Parabolic Poly Cone
Single Stitched High Roll Surround
Vented Pole Piece/Basket for Cooler Voice Coil Temperatures
Bumped Back Plate for Maximum Excursion
Signature Cerwin-Vega Bass
Specifications
SPEAKER SIZE - 10”
SPEAKER TYPE - SUBWOOFER
OHMS (PER COIL) - 2
NUMBER OF VOICE COILS - DUAL
CONE MATERIAL - POLYPROPYLENE
BASKET MATERIAL - STAMPED STEEL
MAGNET TYPE - FERRITE (CERAMIC)
SURROUND MATERIAL - TREATED FOAM
VOICE COIL DIAMETER - INCH (MM) - 2”
THIELE/SMALL PARAMETERS
SENSITIVTY (1W/1M): 85.5DB
VAS (L): 33.8
XMAX (MM): 12.8(MM)
POWER HANDLING RMS: 125W
POWER HANDLING MAX: 800W
MOUNTING DIAMETER : 9.4” (238MM)
Amplifier option:
For 1 sub can use XED3001D for 4 ohm Load
For 2 subs can use CVP2000.1D for 2 ohm Load
