FITTING KIT UNIVERSAL DOUBLE DIN CAGE 110MM (BLACK TRIM)
Roll over image to zoom in Click on image to zoom
FITTING KIT UNIVERSAL DOUBLE DIN CAGE 110MM (BLACK TRIM)

FITTING KIT UNIVERSAL DOUBLE DIN CAGE 110MM (BLACK TRIM)

DNASKU: DDC003
No reviews
Price:
$49.95

Tax included Shipping calculated at checkout

Description

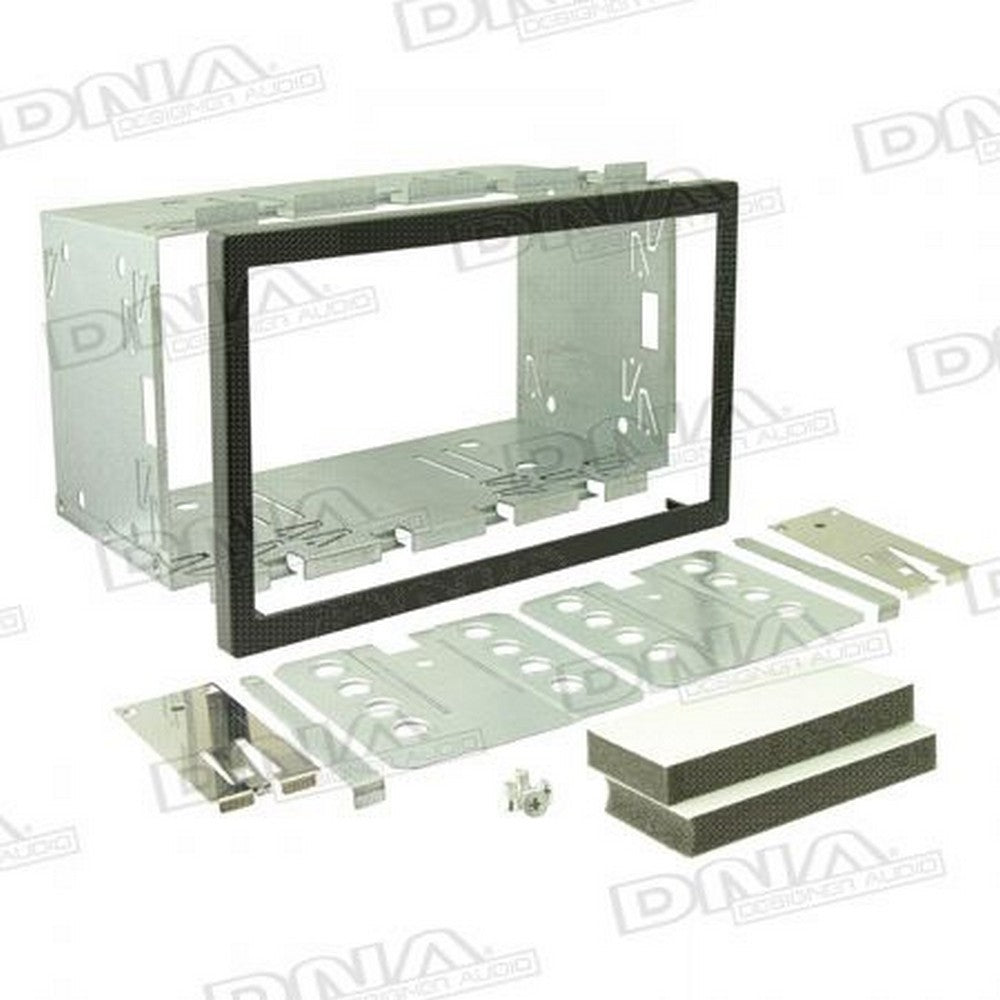

110mm Double DIN cradle fitting frame with black plastic trim ring surround

Used to surround a double DIN head unit so it can be mounted and locked into place within the vehicles dash.

Supplied with:
  • Double DIN fitting frame: 180mm across x 110mm high x 100mm deep
  • 1 x Black plastic trim ring surround for finishing the installation neatly and professionally
  • Left and right plates that screw to the head unit and then lock into the double DIN fitting frame
  • 2 x Brackets used for clamping the plates. These brackets allow for the head unit to be moved backwards and forwards in the cradle to move it into a position where it is flush with the dash of the vehicle.
  • Keys for easy removal of the head unit from the double DIN fitting frame
  • 4 x ISO screws for fastening the left and right plates to the sides of the head unit
  • 2 x Foam pads

Cradle Size:
  • Internal Dimensions: 180mm W x 100mm H
  • External Dimensions: 182mm W x 103mm H
  • Mounting Cage Dimensions: 186mm W x 117mm H

Trim Ring Size:
  • Internal Dimensions: 174mm x 97mm H
  • External Dimensions: 188mm W x 118mm H
