Description

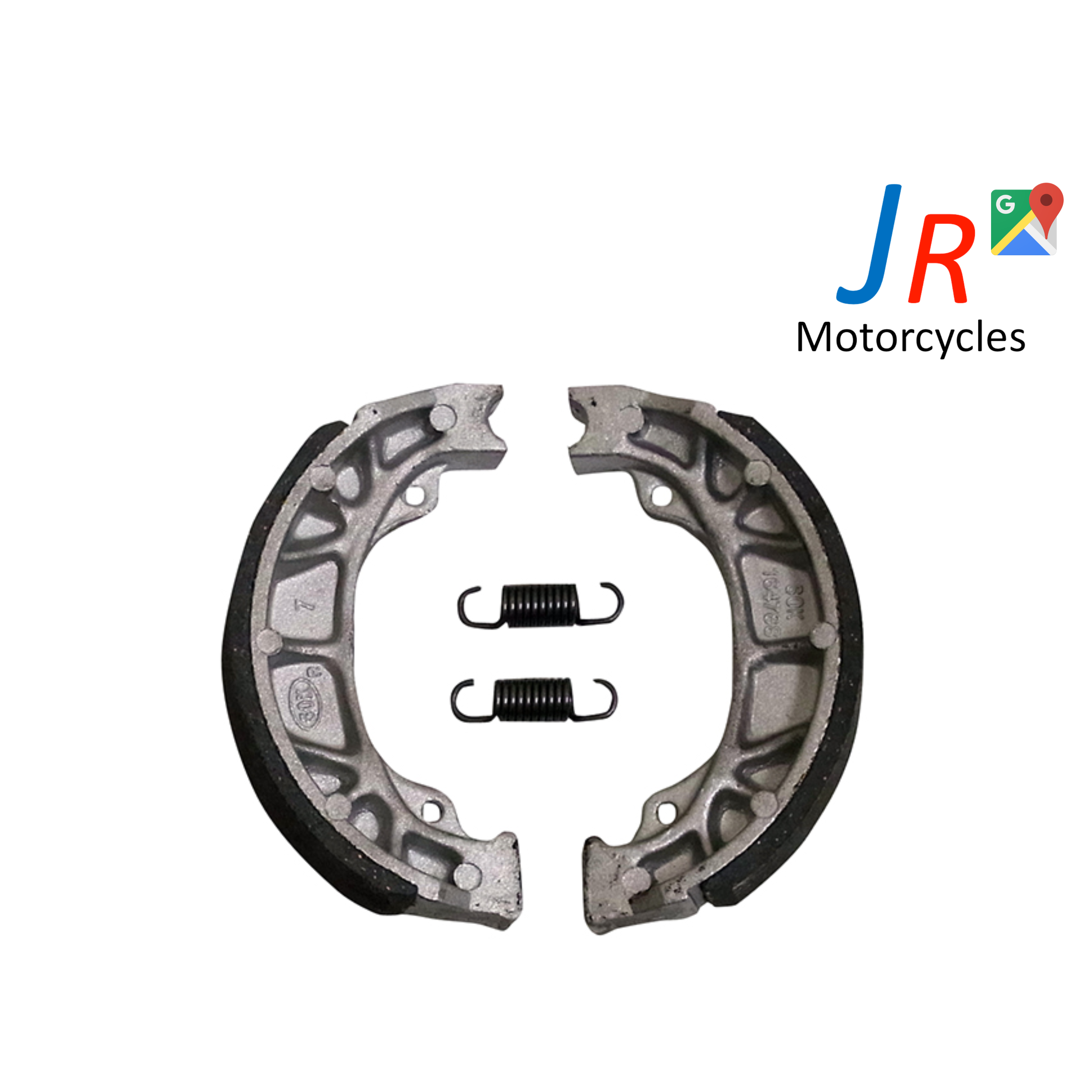

Honda Monkey z50, lead, joker, gorilla brake shoes
Will fit the below models;
Monkey / Gorilla front and rear AB27
Broad 50/90 (rear) AF33/HF06
Cabina 50/90 (rear) AF33/HF06
Lead 50/90/100 AF20/AF48/HF05/JF06
Joker 50/90 AF42/HF09
Honda Z50M
Honda Z50A K0/K1/K2
Honda Z50A K3/K4/K5/K6
Honda Z50J
Honda Z50J1
Honda GORILLA
NOT: crf50 or z50r
Dimensions;
Width of shoe (contact area to drum) : 25mm
Height from top to bottom as in right photo : 100mm
Diameter between centres of shoe contact area when shoes brought together (off bike) : 115mm (this is the measurement that will vary as your shoes wear, and yours may be reading 114,113,112 etc)
Decent quality, we install these at JR Motorcycles workshop and highly recommend them.
Imported from Japan.
