Description

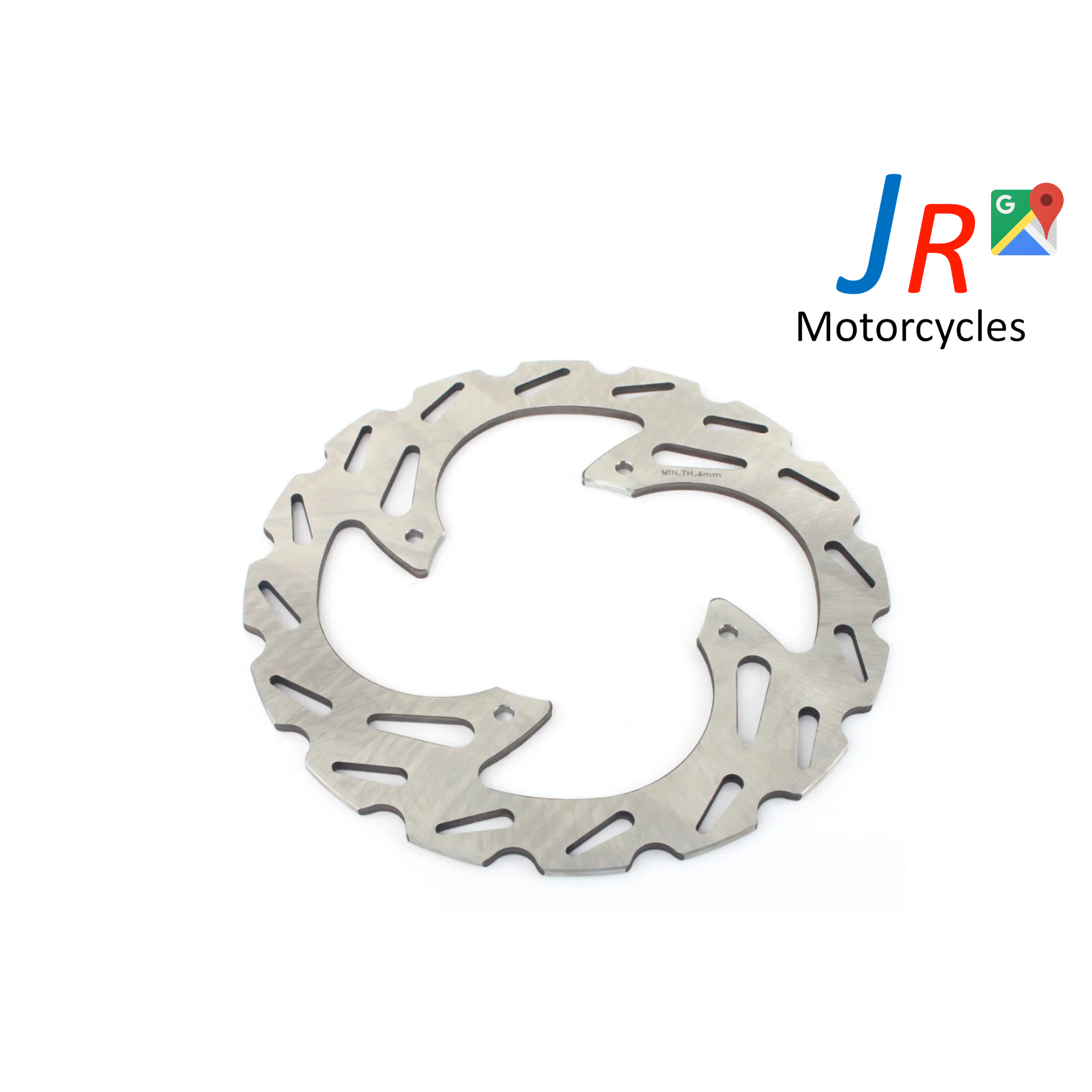

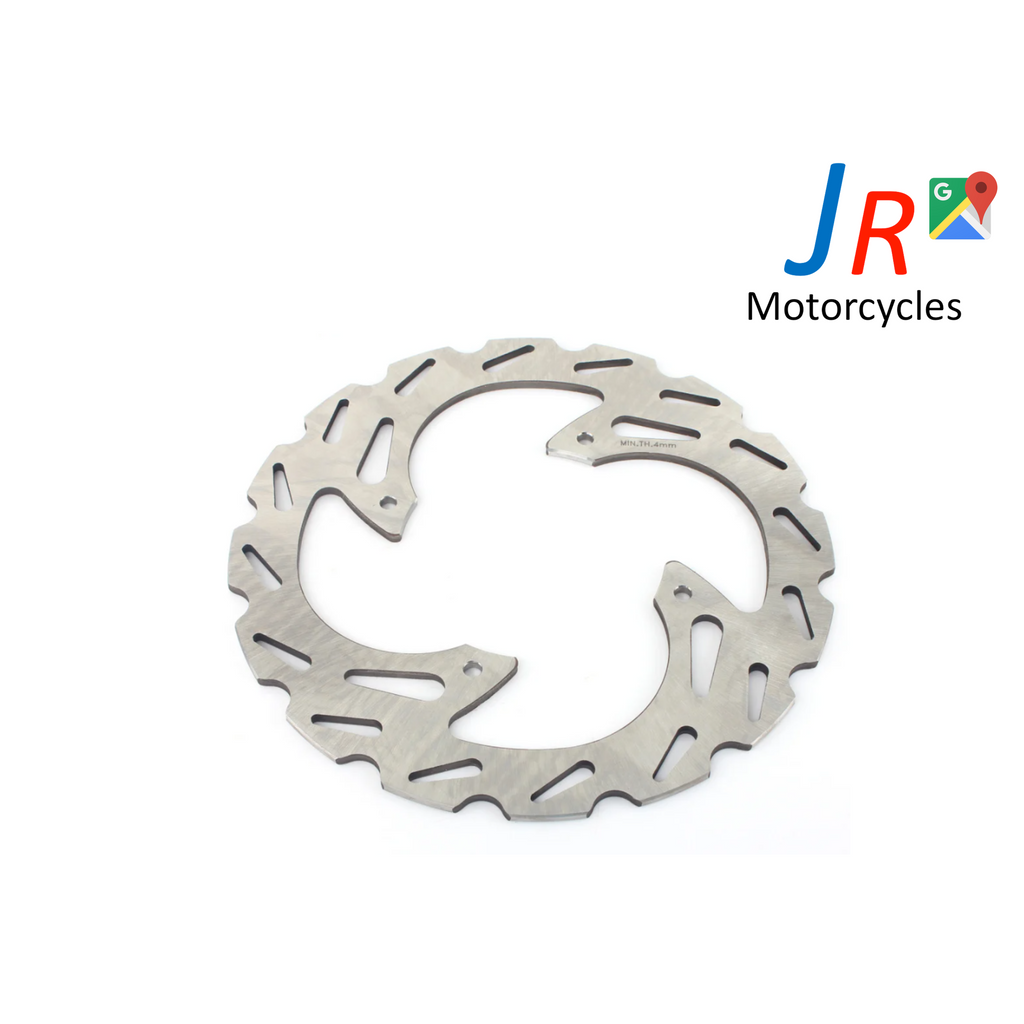

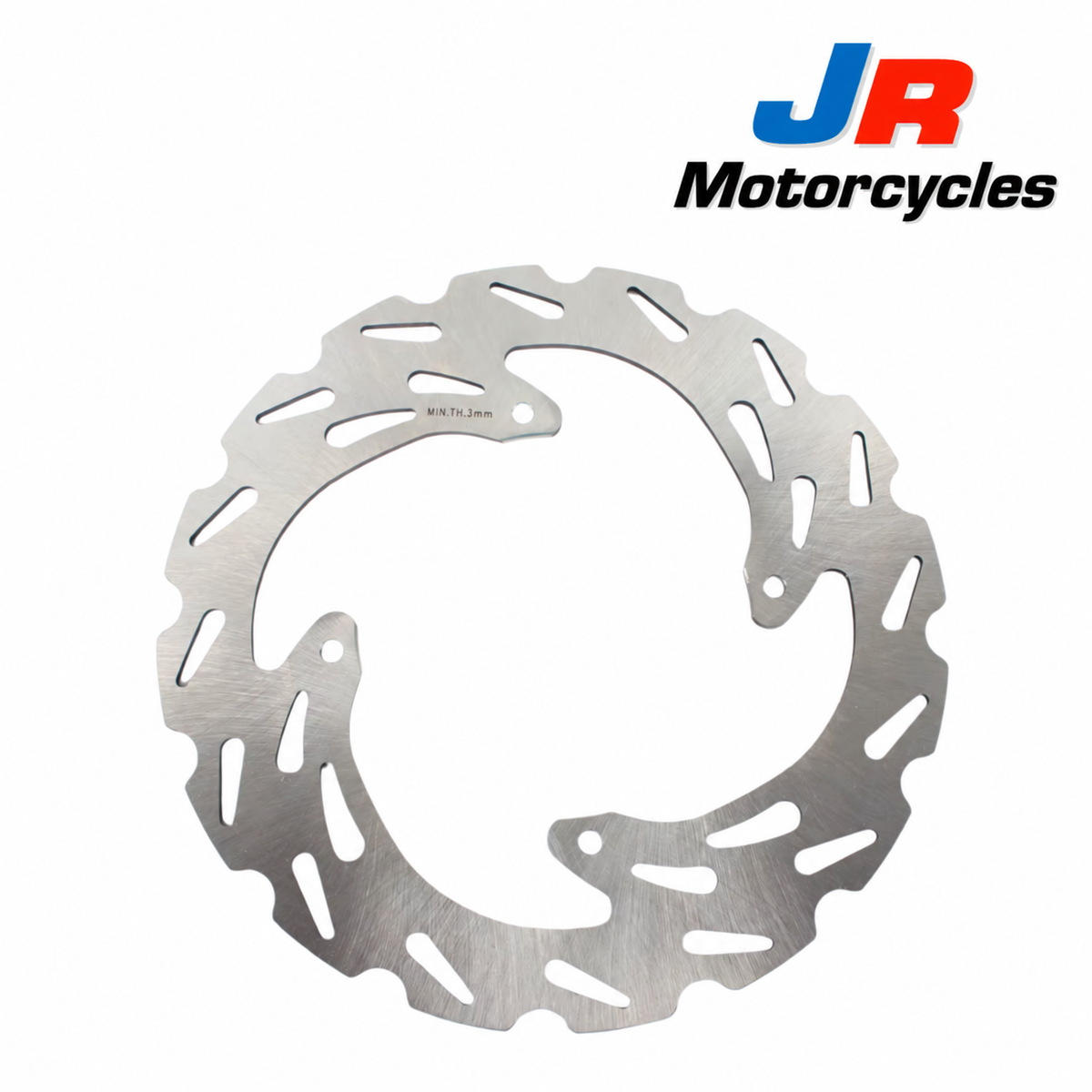

Replacement front brake disc suitable for a wide range of Honda road and off-road motorcycles.
Manufactured from heat-treated 420 stainless steel for reliable braking performance and durability. The slotted design helps disperse heat, water and dirt from the braking surface.
Product details
- Position: Front left
- Outside diameter: 240 mm
- Inside diameter: 118 mm
- Thickness: 3.1 mm
- Number of mounting holes: 4
- Mounting-hole diameter: 6.5 mm
- Pitch-circle diameter: 134 mm
- Disc type: Fixed
- Turning direction: Left-side mount
- Speedometer preparation: No
- Material: Heat-treated 420 stainless steel
- Replaces Genuine Honda 43351-MBN-671
Applications
- Honda AX-1 250: 1989–1994
- Honda CR125: 1992–1994
- Honda CR250: 1992–1994
- Honda CR500: 1992–1994
- Honda CRE260: 1995–1998
- Honda CRF230F: 2004–2009
- Honda CRF230F Easy Trial: 2004–2007
- Honda CRF230L: 2008–2009
- Honda CRF230M: 2009
- Honda CRM250AR: 1997–1998
- Honda CRM250R: 1991–1993
- Honda CRM250RR: 1994–1996
- Honda CRM50R: 1993–1996
- Honda CRM75R: 1989–1994
- Honda CTX200: 2004
- Honda CTX200A Bushlander: 2004
- Honda NX250: 1990–1993
- Honda SL230: 1997–2001
- Honda XL250 Degree: 1991–1992
- Honda XL250R: 1984–1993
- Honda XL250R Baja: 1988–1991
- Honda XL250R Baja Mk1: 1989–2001
- Honda XL250R Baja Mk2: 1989–2001
- Honda XL250RL: 1990
- Honda XL350: 1984–1990
- Honda XLR125R: 1998–2000
- Honda XLR125RW: 1998–2001
- Honda XLR250R SPL: 1994
- Honda XR250: 2000–2003
- Honda XR250 Baja: 2000–2003
- Honda XR250 Motard (MD30): 2003–2005
- Honda XR250R: 1984–1985
- Honda XR250R: 1991–1995
- Honda XR250R: 1996–1997
- Honda XR250R: 1998–2004
- Honda XR350: 1985–1987
- Honda XR400R: 1996–1998
- Honda XR400R: 1999–2004
- Honda XR500: 1983–1986
- Honda XR600R: 1987
- Honda XR600R: 1991–1992
- Honda XR600R: 1993–2000
- Honda XR650L: 1993
- Honda XR650R: 2000–2007
Important fitment information
Please check the dimensions and mounting specifications against your existing brake disc before ordering. Fitment may vary between markets and model specifications.
Ensure the brake disc is installed by a suitably qualified technician and that all mounting bolts are tightened to the motorcycle manufacturer’s specifications.
