Description

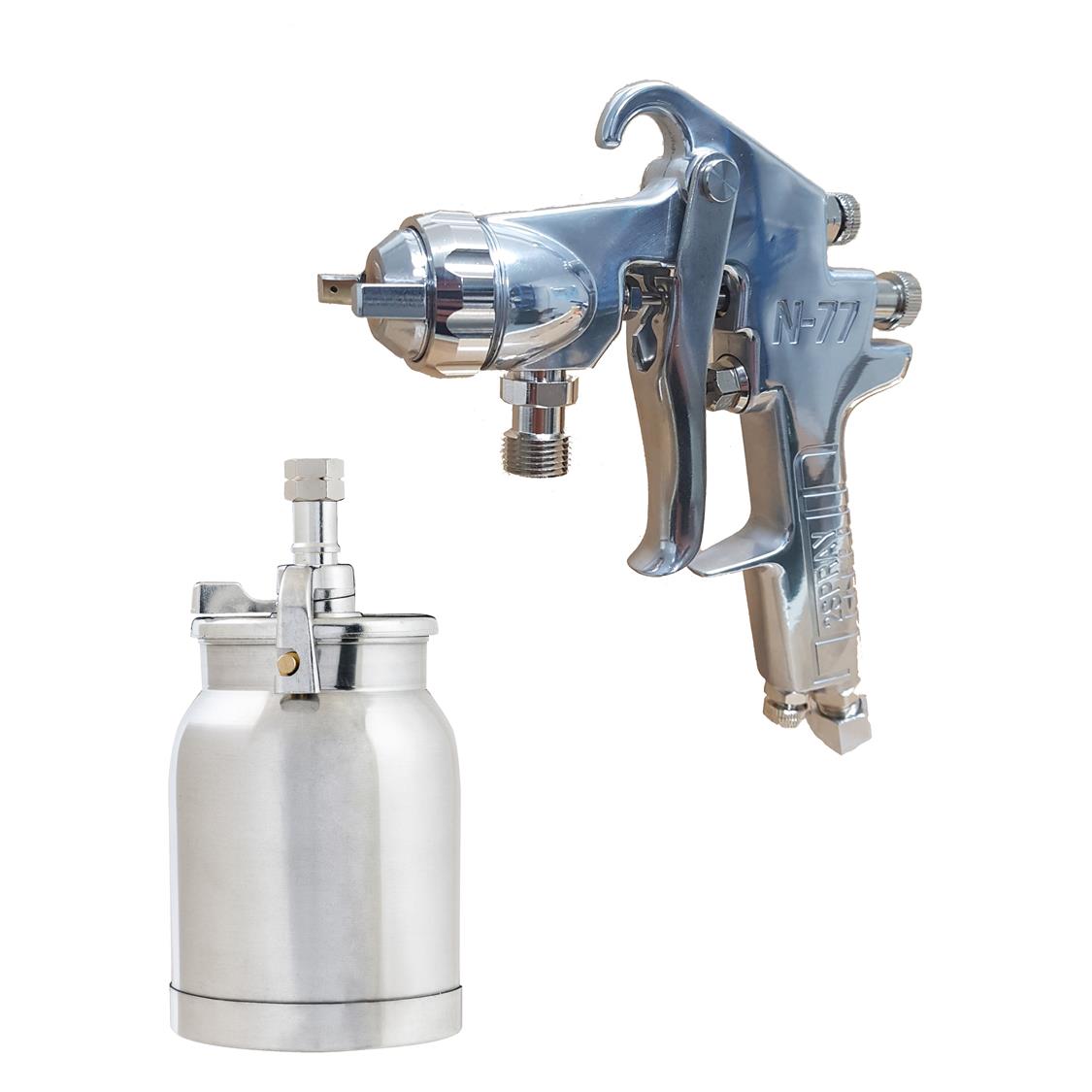

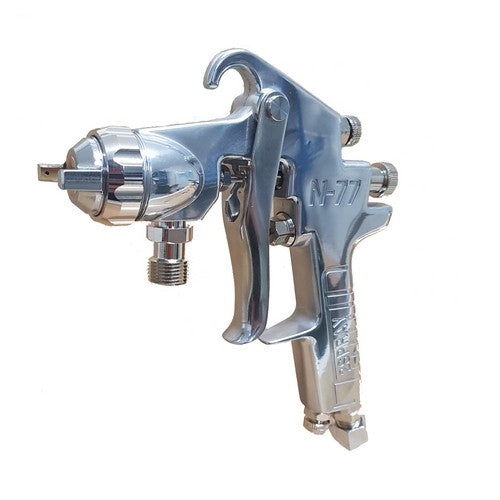

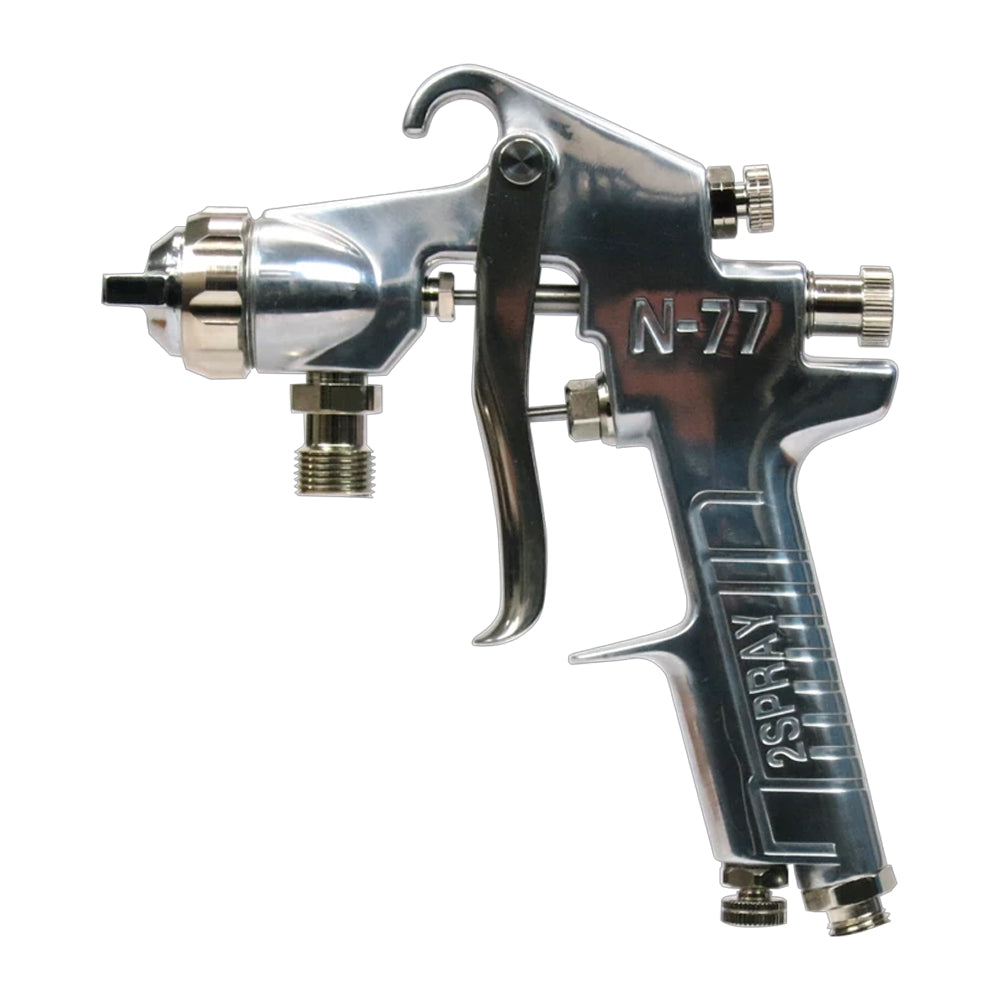

N77 Suction Gun Only
A well balanced general purpose spray gun
Polished body for easy cleaning
Built-in air adjuster
Comfortable to use
Excellent manoeuvrability
Ideal for Medium to Large paint jobs
| Part No. | Fluid Nozzle Size [mm] | Air Pressure @ Gun Inlet [bar] | Air Consumption [l/min] | Fluid Output [ml/min] | Fan Pattern [mm] | Cap # | Pot type / size |
|---|---|---|---|---|---|---|---|
| N77.1 | 1.5 | 3.5 | 180 | 255 | 210 | 1 | N/A |
| N77.11 | 1.5 | 3.5 | 290 | 255 | 260 | 11 | N/A |
| N77.12 | 1.5 | 3.5 | 370 | 255 | 230 | 12 | N/A |
| N77.2 | 2.0 | 3.5 | 250 | 245 | 255 | 2 | N/A |
| N77.21 | 2.0 | 3.5 | 340 | 350 | 270 | 21 | N/A |
| N77.3 | 2.5 | 3.5 | 325 | 435 | 280 | 3 | N/A |
