Description

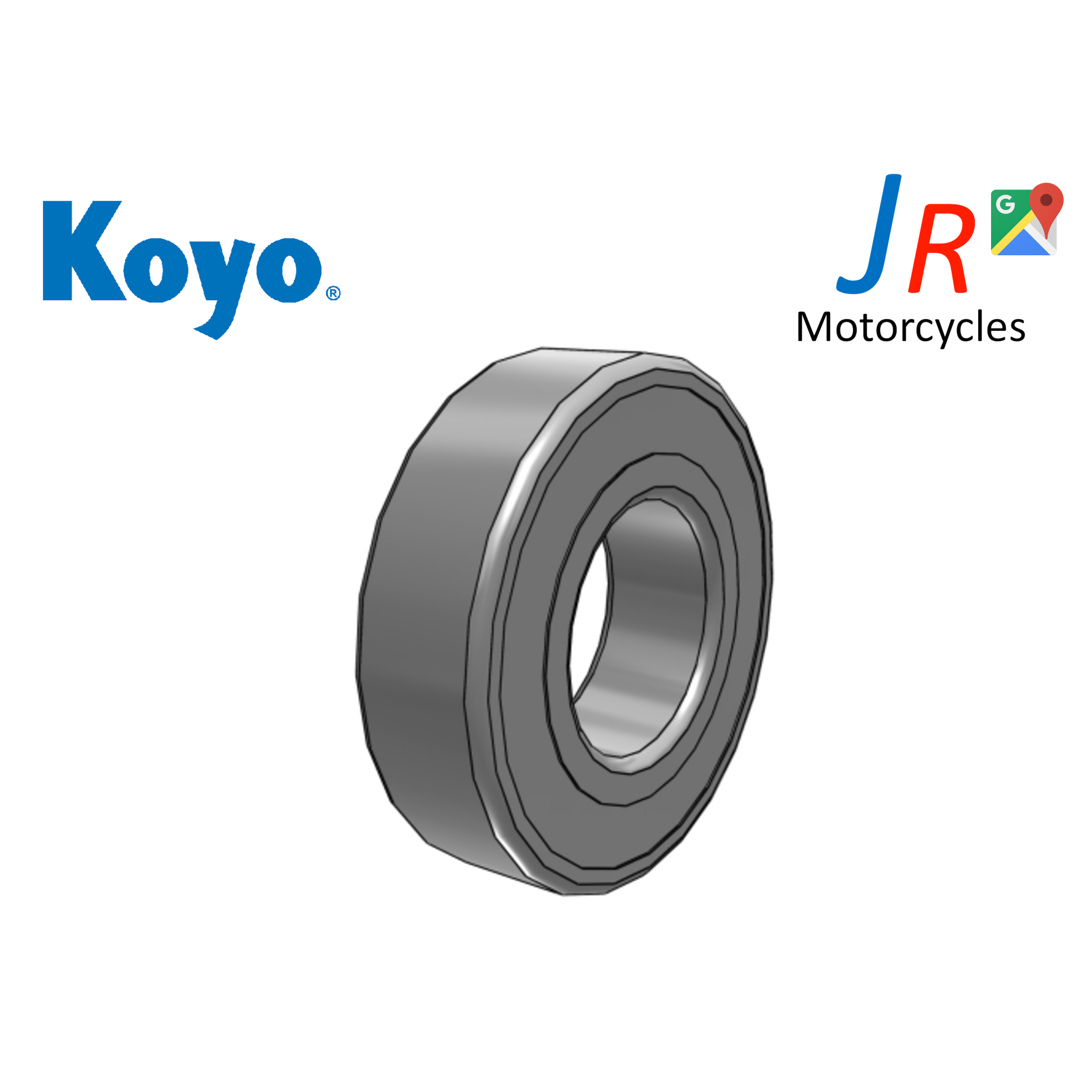

KOYO Bearing 28x52x12 60/28 2RS1
Bearing Number: 60/28-2RS1
Size (mm): 28x52x12
Brand: KOYO
Bore Diameter (mm): 28
Outer Diameter (mm): 52
Width (mm): 12

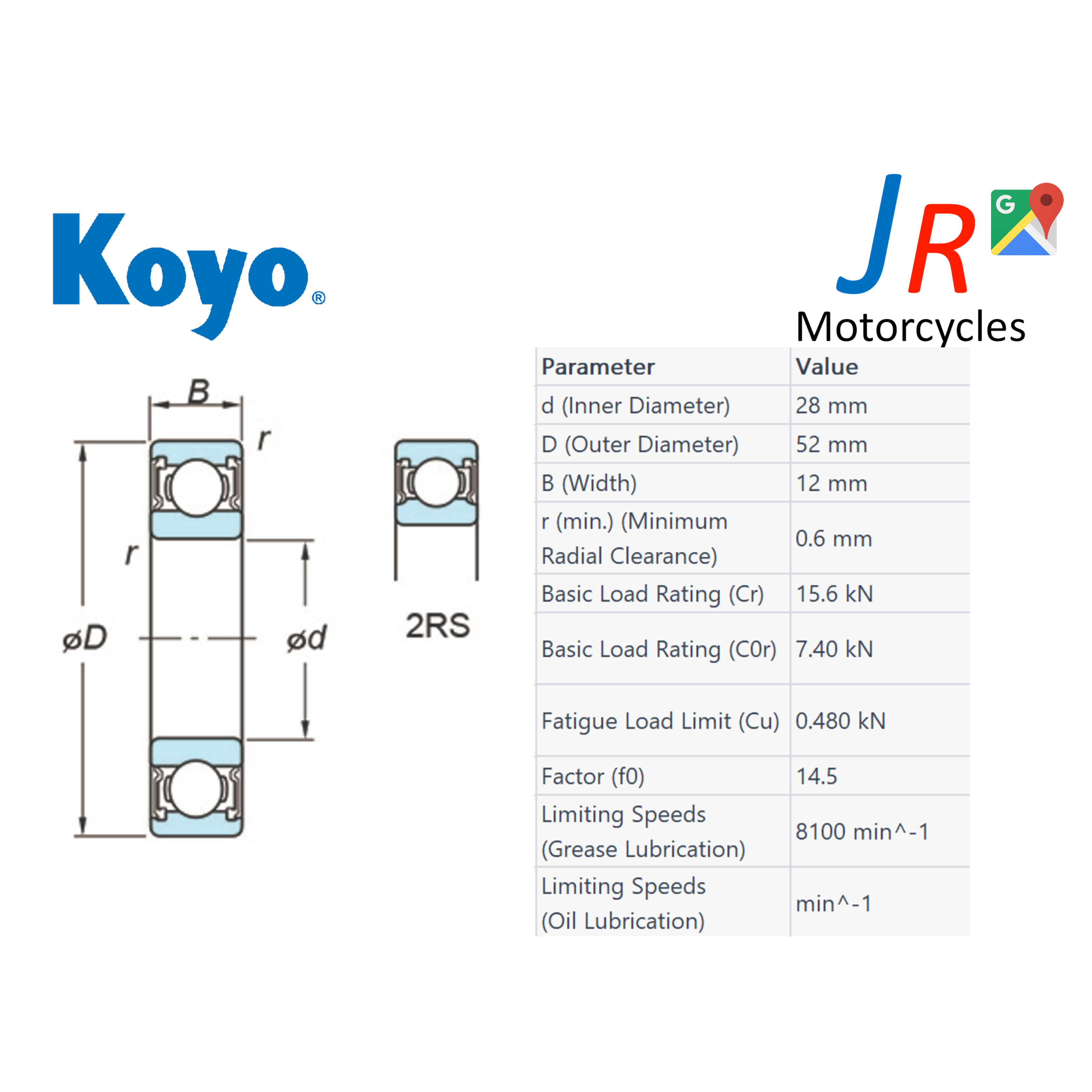

Bearing dimensions and specification in KOYO catalogue:
d: 28 mm
D: 52 mm
B: 12 mm
C: 12 mm
r min.: 0.6 mm
da min.: 32 mm
da max: 33 mm
Da max.: 48 mm
ra max.: 0.6 mm
Weight: 0.097 Kg
Basic Dynamic Load Rating (C): 12.4 kN
Basic Static Load Rating (C0): 7.4 kN
(Grease) Lubrication Speed: 8100 r/min
Calculation Factor (f0): 14.5
For more details, please refer to the product photos.
