Description

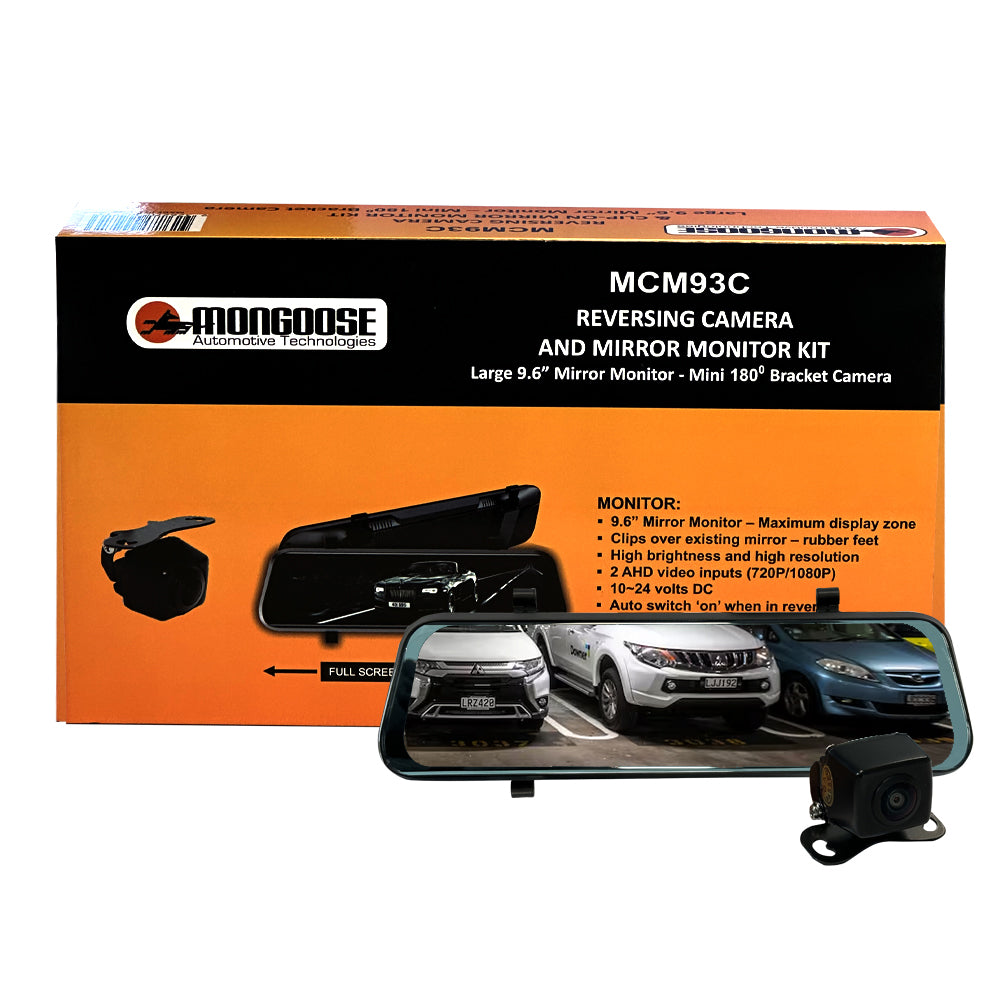

Enhance your vehicle's visibility with our premium camera and monitor system, featuring a large 9.6" mirror monitor and a durable, high-resolution camera. Ideal for cars, utes, 4x4s with canopies, vans, and commercial vehicles, this system offers superior clarity and versatility.
Key Features:

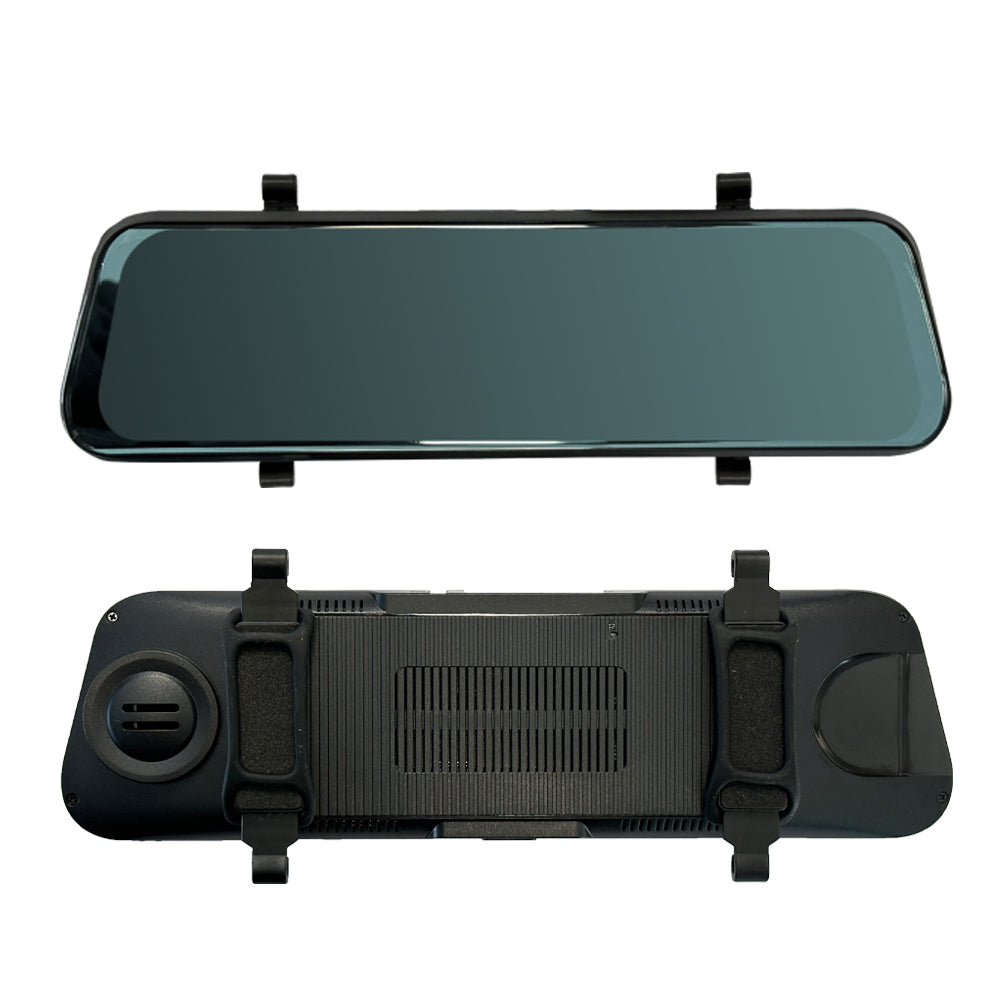

• Large 9.6" Mirror Monitor: Enjoy a crisp, full-screen display with high brightness and resolution for optimal viewing.
• Dual Camera Inputs: Connect up to two cameras for flexible monitoring options.
• Three Viewing Modes:
1. Camera 1 Mode: Continuously displays the image from Camera 1 (connected to Input 1).
2. Camera 2 Mode: Continuously displays the image from Camera 2 (connected to Input 2).
3. Mirror Mode with Reverse Trigger: Shows a mirror view by default, but switches to Camera 2 when the vehicle is in reverse. The camera image will appear in the lower part of the screen when triggered.
• Trigger Integration: If connected to a reverse trigger, the system will override the mirror view and display the image from Camera 2 input.

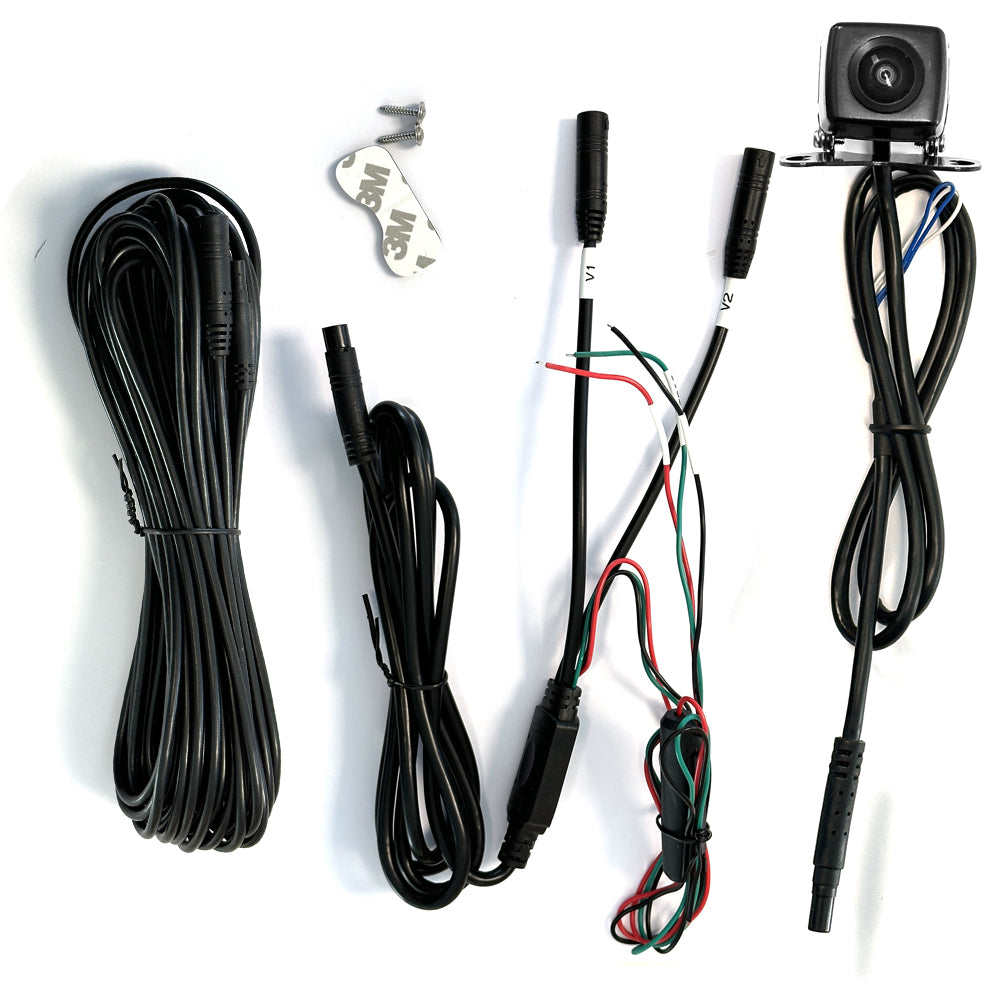

• Long Cable: Includes a 10-meter cable to facilitate installation in both small and large vehicles, with the capability to turn the camera on via the monitor button.
• Clip-On Design: The monitor features a rubber buffer for universal installation over existing mirrors, ensuring a secure fit.
Ideal For: This system is perfect for any vehicle requiring wide and clear camera views. Easily switch between camera views or activate the reverse camera with the press of a button.
Additional Camera Options:
• MC680 Mini Camera: A compact, high-quality camera for additional coverage.
• Mongoose 1080P Heavy Duty Camera: For a more robust option with a 4-pin AVI plug.
Specifications:
• Monitor:
-9.6” Mirror Monitor
-Clips over existing mirror
-High brightness and high resolution
-2 AHD video inputs (720P/1080P)
-Operates on 10~28 volts DC
Auto-switches on when in reverse
• Camera:
-Heavy-duty bracket mount
-Wide-angle, 1080P resolution
-IP69K water-resistant
-Low light operation
-Includes a 10-meter cable connecting the MC680 camera directly to the mirror monitor
