Description

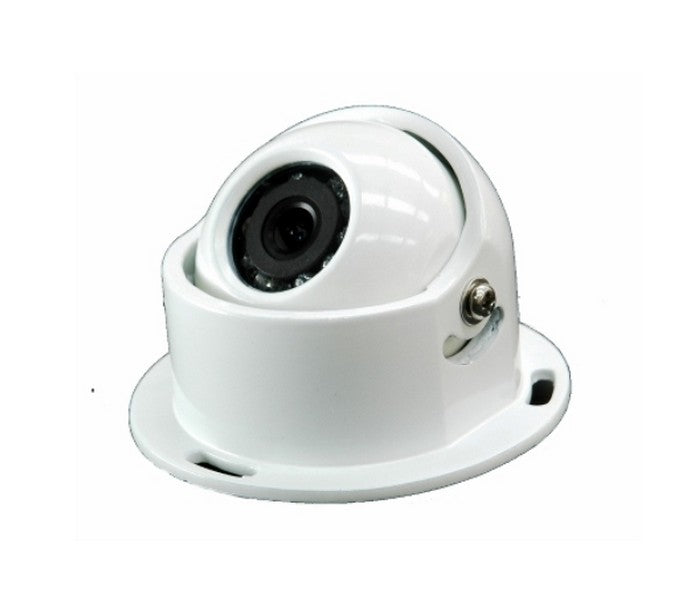

Usually mounted inverted on the inside of a vehicles roof of motorhomes, caravans, horse floats, buses, etc where you need to monitor what is happening inside, or can be mounted to see through the rear window for reversing.
As the camera is alluminium bodied & waterproof, it can be underslung mounted externally.
MC6DWP = PAL TV system
MC6DWN = NTSC TV system
Water resistant rating IP67
Images Sensors 1/3" CCD COLOUR (HQi)
Effective Pixels 638X582/512X492
Sensing Area(mm) 4.9X3.7
Resolution (TV Lines) 420
S/N ratio : Better than 48dB
Lens: F=2.8mm/F=2.0
Lens Angle(Deg.):120
Current Consumption(mA):280
Power Supply(DCV) 12

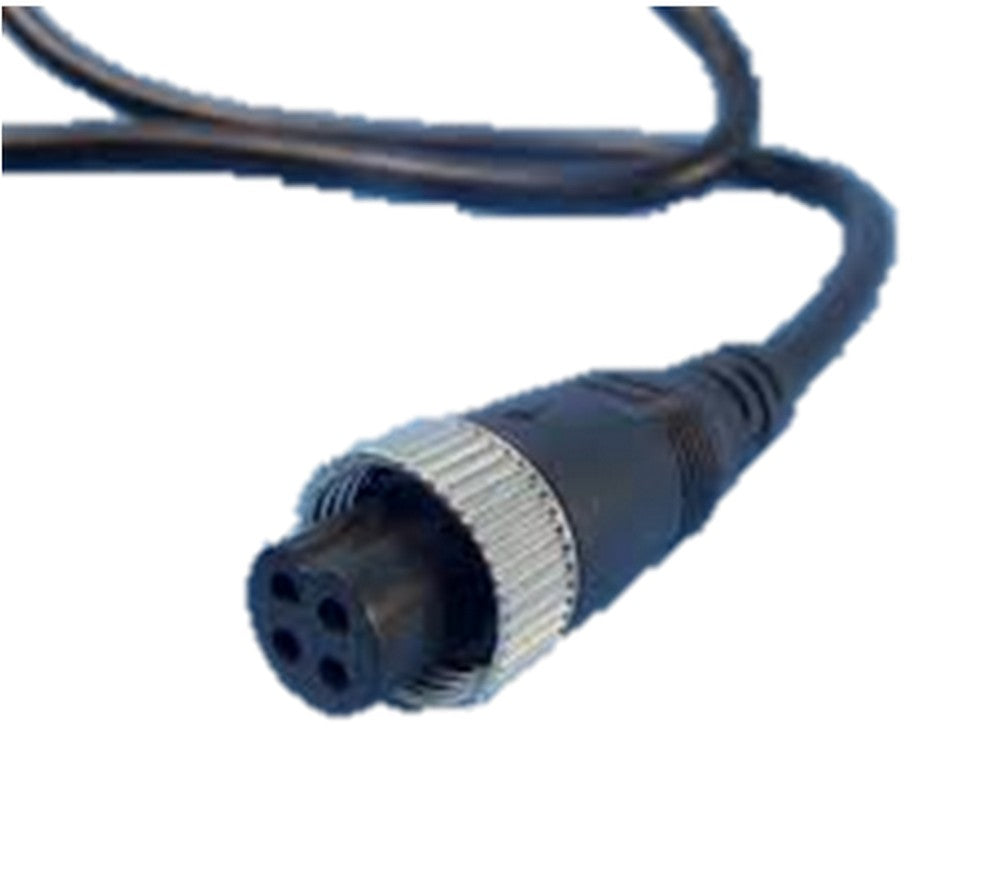

Dimension: 68X55mmRequires camera cable to suit installation length - not included
