Description
Please Note

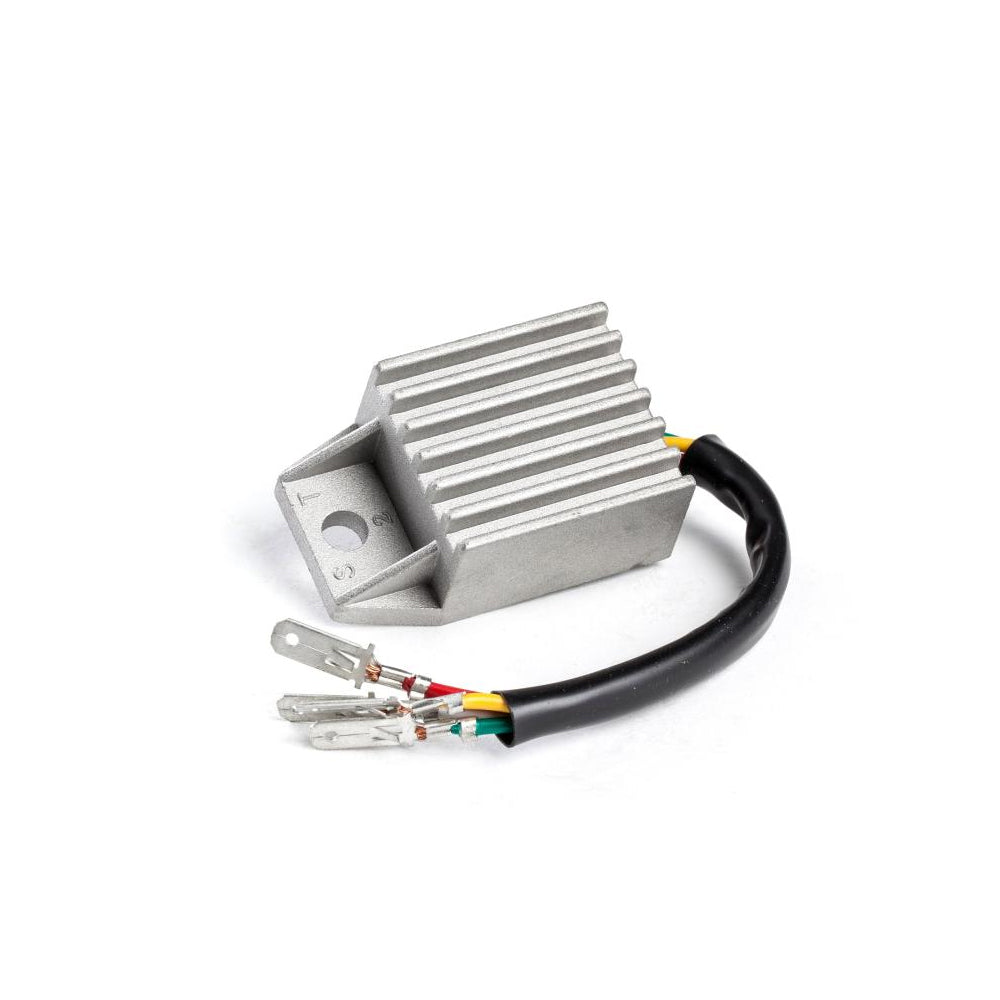

This reg/rec has been supplied without the terminals installed in the connector body. This has been done due to variations in the OE pin-outs. Below are the lead colours and corresponding assignments.

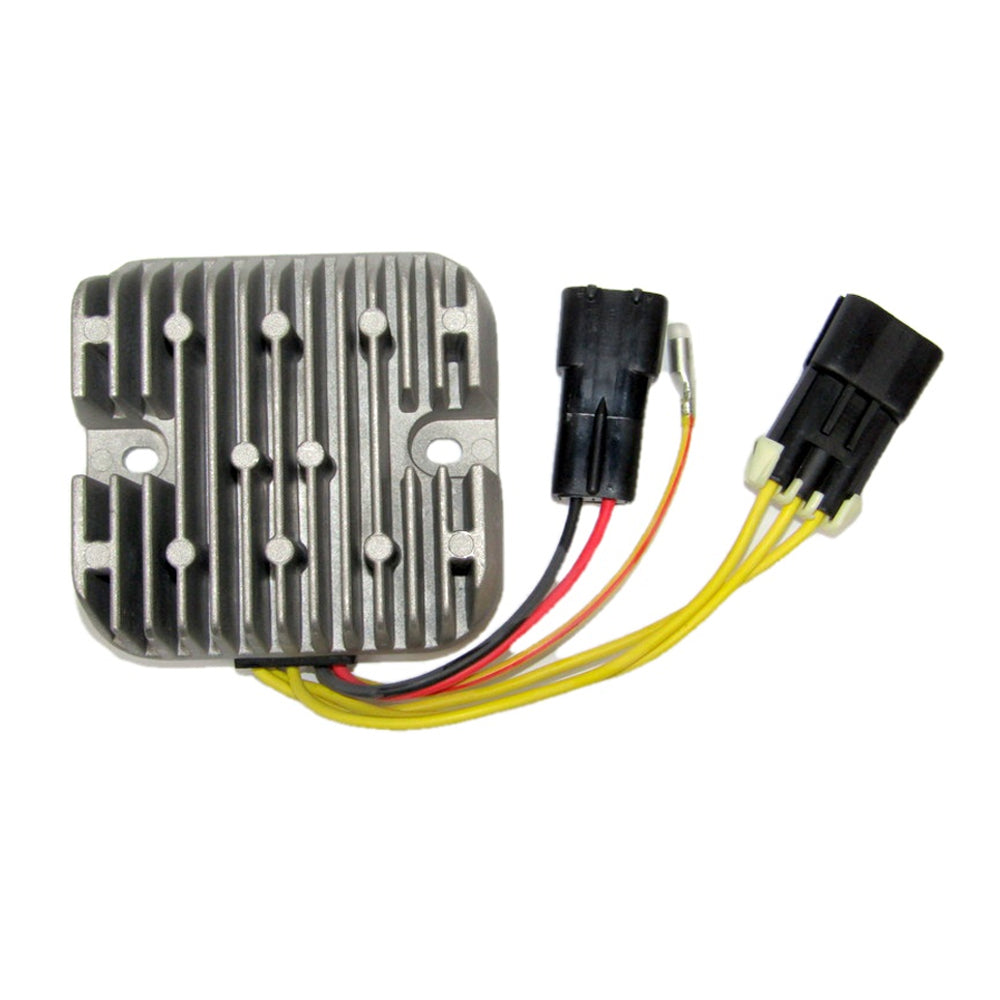

Rick's part #10-703 is an OEM Style Rectifier-Regulator for applications with OE# 0454003,0454702,31600-GW0-004,31600-GT0-000,31600-GN2-003 and 31600-GM0-003.
Please consult a service manual/wiring diagram if necessary
YELLOW= Stator input AC
RED Battery positive +
GREEN =Battery negative -
WHITE = Output to lights
