Description

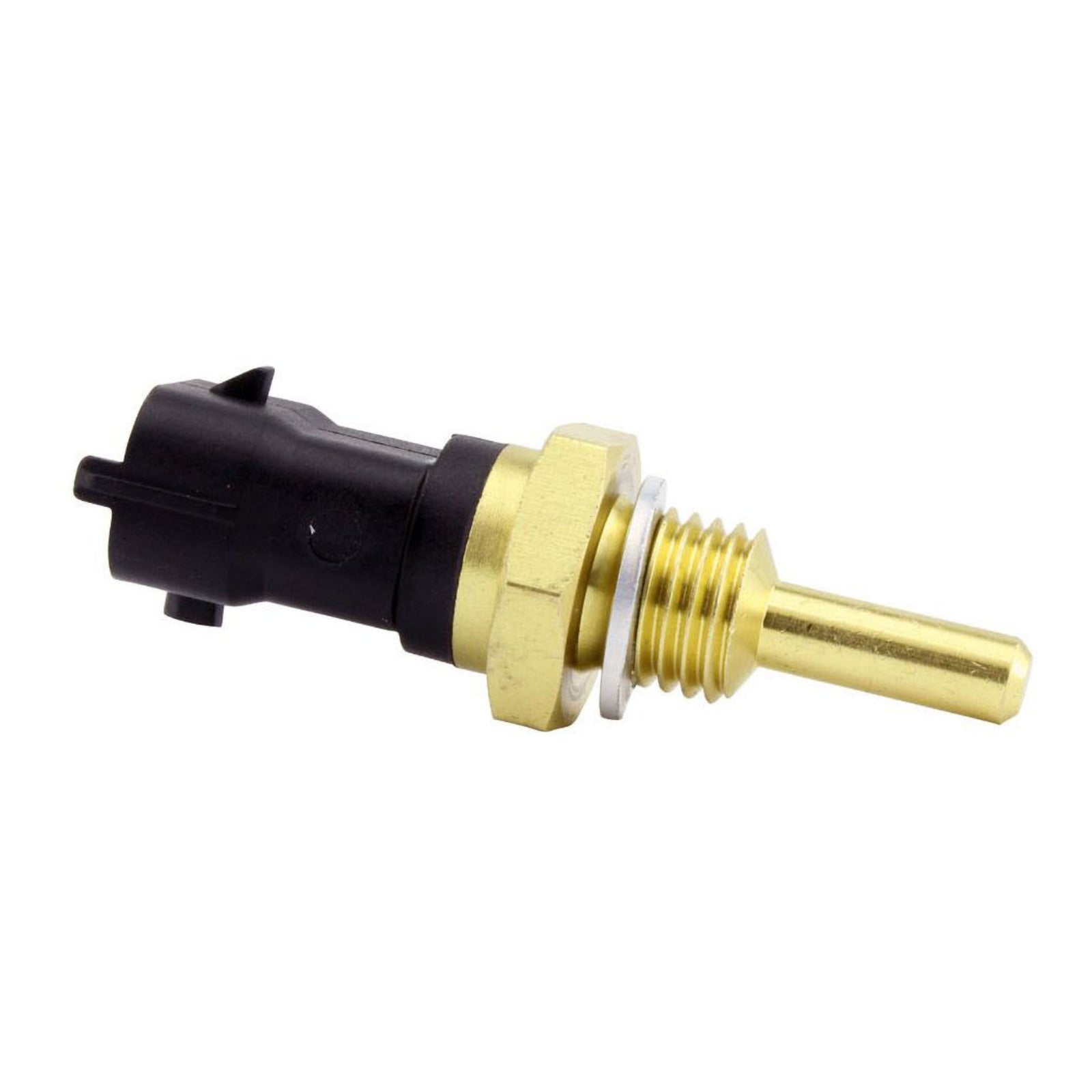

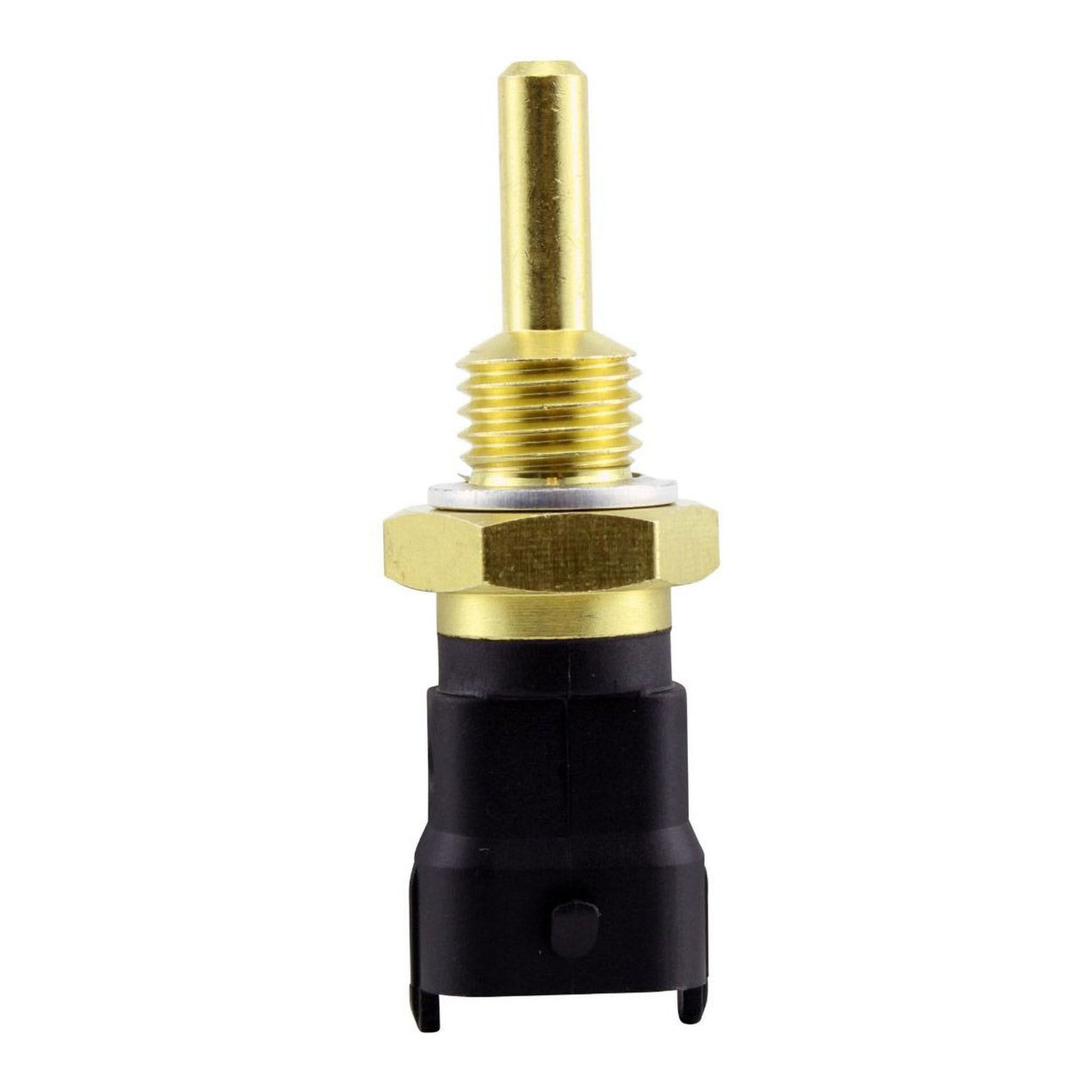

Brand new aftermarket water temperature sensor.
- Direct replacement for the original unit.
- Plug-and-play, direct fit and easy installation.
- All products shipped are tested.
All item pictures are accurate. If in doubt, compare the item with the original part.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Width: 19 mm
- Length: 60 mm
- Height: 19 mm
- Thread diameter: 11.85 mm
- Thread length: 8 mm
- Nut diameter: 19 mm
Other specifications:
- Number of terminals: 2
- Low temperature: 11.8k–13.4k ohms at -30°C
- High temperature: 100–125 ohms at 120°C
